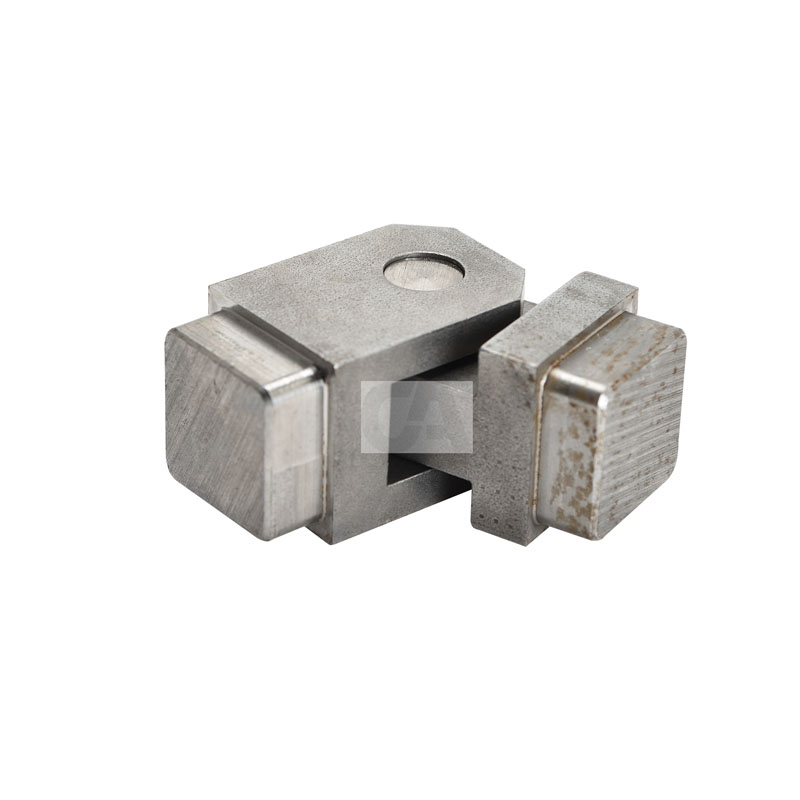

180° universal centre hinge for bi folding leaves

SKU: 1600

1600.30x30	180° universal centre hinge for bi folding leaves Tub.30x30x2
1600.30x40	180° universal centre hinge for bi folding leaves Tub.30x40x2
1600.40x30	180° universal centre hinge for bi folding leaves Tub.40x30x2
1600.40x40	180° universal centre hinge for bi folding leaves Tub.40x40x2

fix
weld

Category: Swing gates accessories

Specifications
Downloads

Technical table

cod.	mm.	pz/pcs	A	B	C	D	E	Barcode	CodTek
1600.30x30	Tub.30x30x2	4	55	30	30	25	25	8033039315830	ACE160001GR
1600.30x40	Tub.30x40x2	4	55	30	40	25	35	8033039319500	ACE160004GR
1600.40x30	Tub.40x30x2	4	55	40	30	35	25	8033039315908	ACE160002GR
1600.40x40	Tub.40x40x2	4	55	40	40	35	35	8033039315915	ACE160003GR

Public files

1600_EN_Rev.A.pdf

1600_IT_Rev.A.pdf
