Technical table
| Cod. | mm. | Pz/Pcs | A | C | sp | ØD | E | L | S |
|---|---|---|---|---|---|---|---|---|---|
| 110OT.140 | 140 | 12 | 66 | 13 | 2.5 | Ø11 | 5.5 | 149 | 2.7 |
| 110OTP.140 | 140P | 12 | 66 | 15 | 2.7 | Ø12 | 6 | 150 | 2.7 |
| 110OTP.170 | 170P | 12 | 81 | 15 | 2.7 | Ø12 | 6 | 180 | 2.7 |

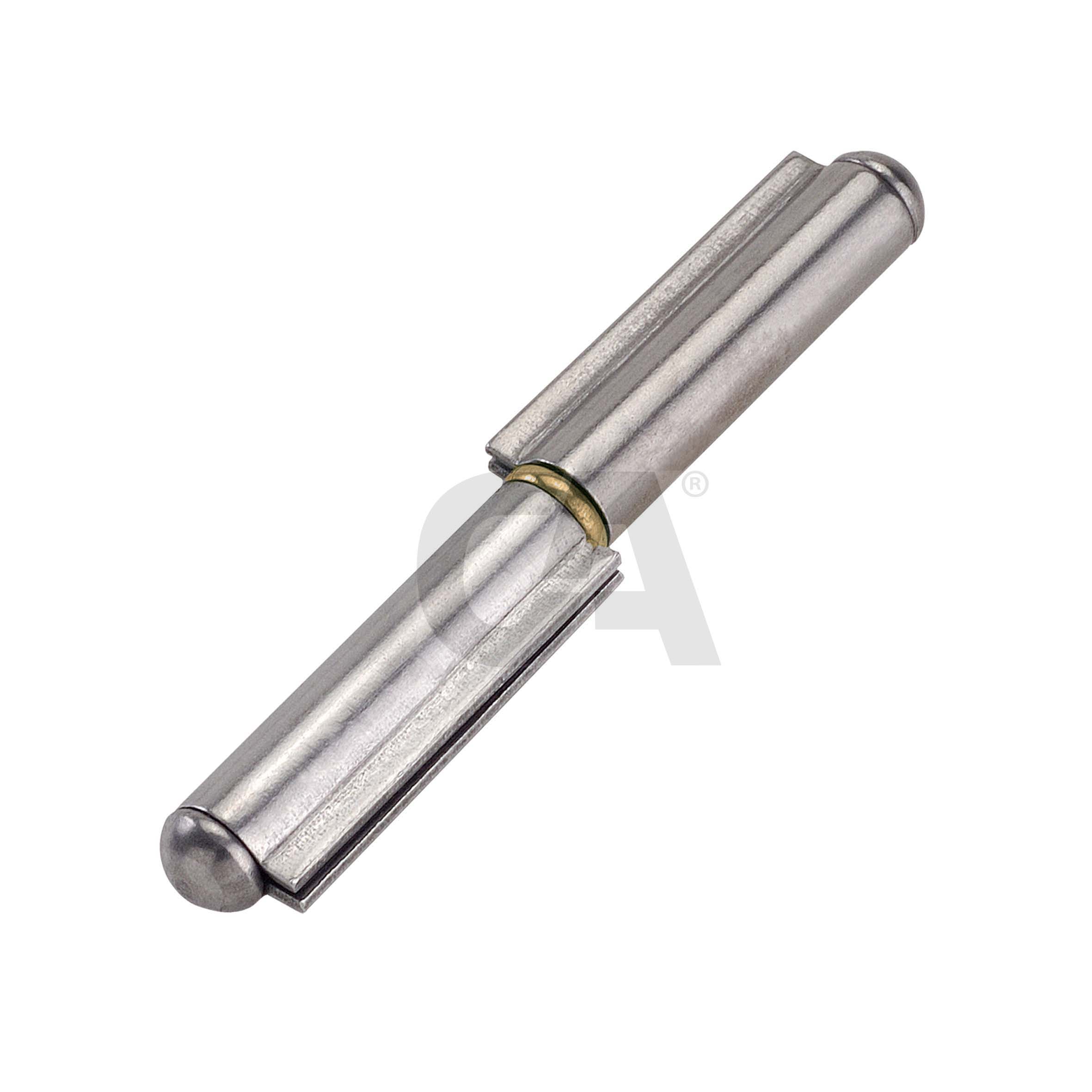

Plug hinge to be welded with 2 wings and fixed brass pin
| 110OT.140 | Plug hinge to be welded with 2 wings and fixed brass pin mm.140 |
| 110OTP.140 | Heavy Plug hinge to be welded with 2 wings and fixed brass pin mm.140 |
| 110OTP.170 | Heavy Plug hinge to be welded with 2 wings and fixed brass pin mm.170 |
