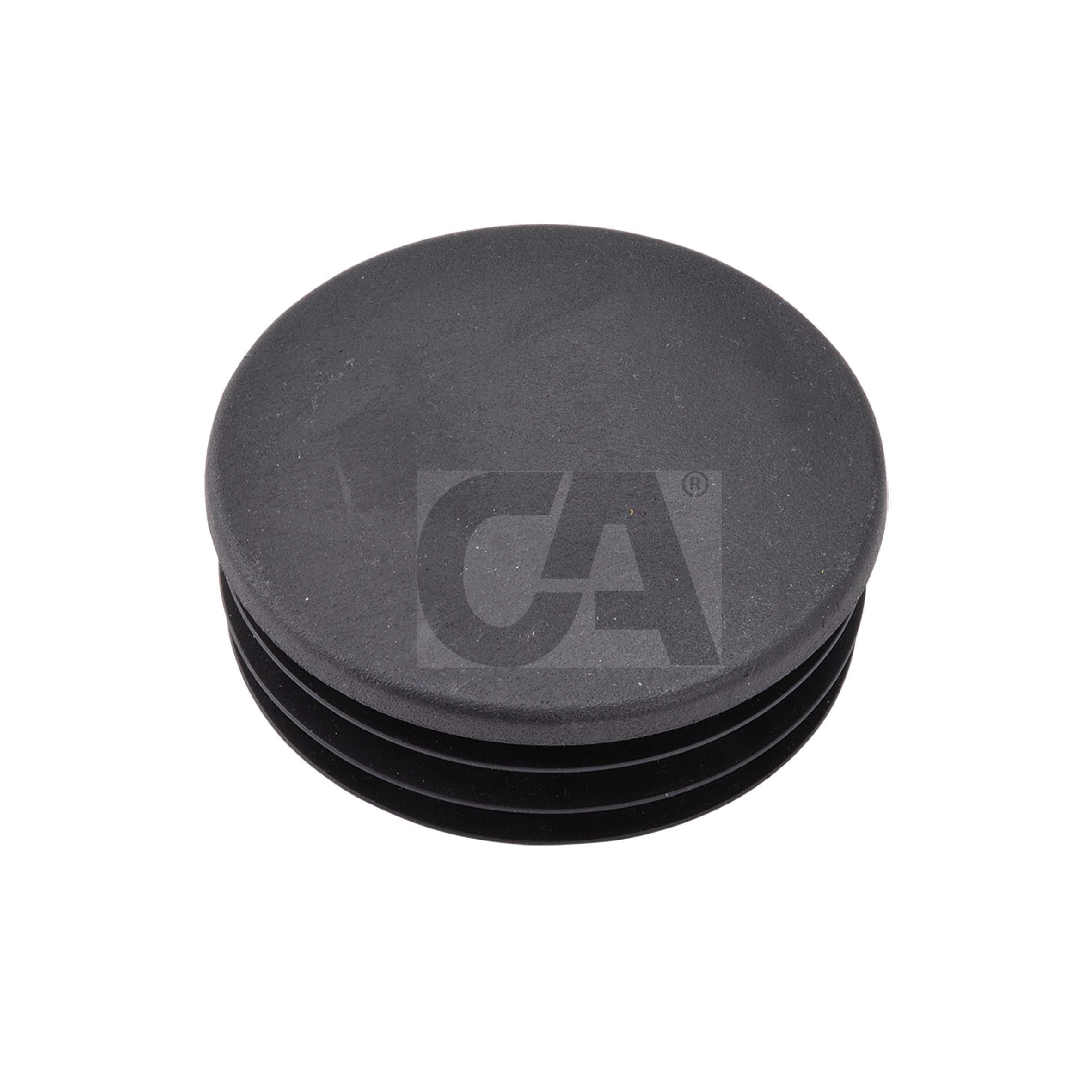

Round post cap

SKU: 331

331.10	Round post cap PE Ø 10 – Ø”25/64
331.15	Round post cap PE Ø 15 – Ø”19/32
331.16	Round post cap PE Ø 16 – Ø”5/8
331.20	Round post cap PE Ø 20 – Ø”25/32
331.25	Round post cap PE Ø 25 – Ø”63/64
331.30	Round post cap PE Ø 30- Ø”1”3/16
331.32	Round post cap PE Ø 32 – Ø”1”17/64
331.35	Round post cap PE Ø 35 – Ø”1”3/8
331.40	Round post cap PE Ø 40 – Ø”1”37/64
331.42	Round post cap PE Ø 42 – Ø”1”21/32
331.45	Round post cap PE Ø 45 – Ø”1”49/64
331.48	Round post cap PE Ø 48 – Ø”1”57/64
331.50	Round post cap PE Ø 50 – Ø”1”31/32
331.60	Round post cap PE Ø 60 – Ø”2”23/64
331.80	Round post cap PE Ø 80 – Ø”3”5/32
331.100	Round post cap PE Ø 100 – Ø”3”15/16

Category: Hardware

Specifications
Downloads

Technical table

cod.	Ø	Ø"	pz/pcs	ØD	H	L	sp. Tubo
331.10	10	25/64	200	Ø10	3,5	11	1 ÷ 2
331.15	15	19/32	200	Ø15	3	13	1 ÷ 2
331.16	16	5/8	200	Ø16	5	11	1 ÷ 2
331.20	20	25/32	200	Ø20	5	11,5	1 ÷ 2,5
331.25	25	63/64	100	Ø25	5	11,5	1 ÷ 3
331.30	30	1"3/16	100	Ø30	5	11,5	1 ÷ 2,5
331.32	32	1"17/64	100	Ø32	5	12	1 ÷ 3
331.35	35	1"3/8	100	Ø35	5	11,5	1 ÷ 3
331.40	40	1"37/64	100	Ø40	5	11,5	1 ÷ 3
331.42	42	1"21/32	100	Ø42	5	11,5	1 ÷ 3
331.45	45	1"49/64	100	Ø45	5	11	1 ÷ 3
331.48	48	1"57/64	100	Ø48	5	11,5	1,2 ÷ 3,6
331.50	50	1"31/32	50	Ø50	5	11,5	1 ÷ 2,5
331.60	60	2"23/64	50	Ø60	5	18,5	1,5 ÷ 3
331.80	80	3"5/32	50	Ø80	4	21	1,5 ÷ 3
331.100	100	3"15/16	25	Ø100	6	28,5	2 ÷ 4,5

Public files

0331_APP_Rev.A.pdf

0331_EN_Rev.A.pdf

0331_IT_Rev.A.pdf
