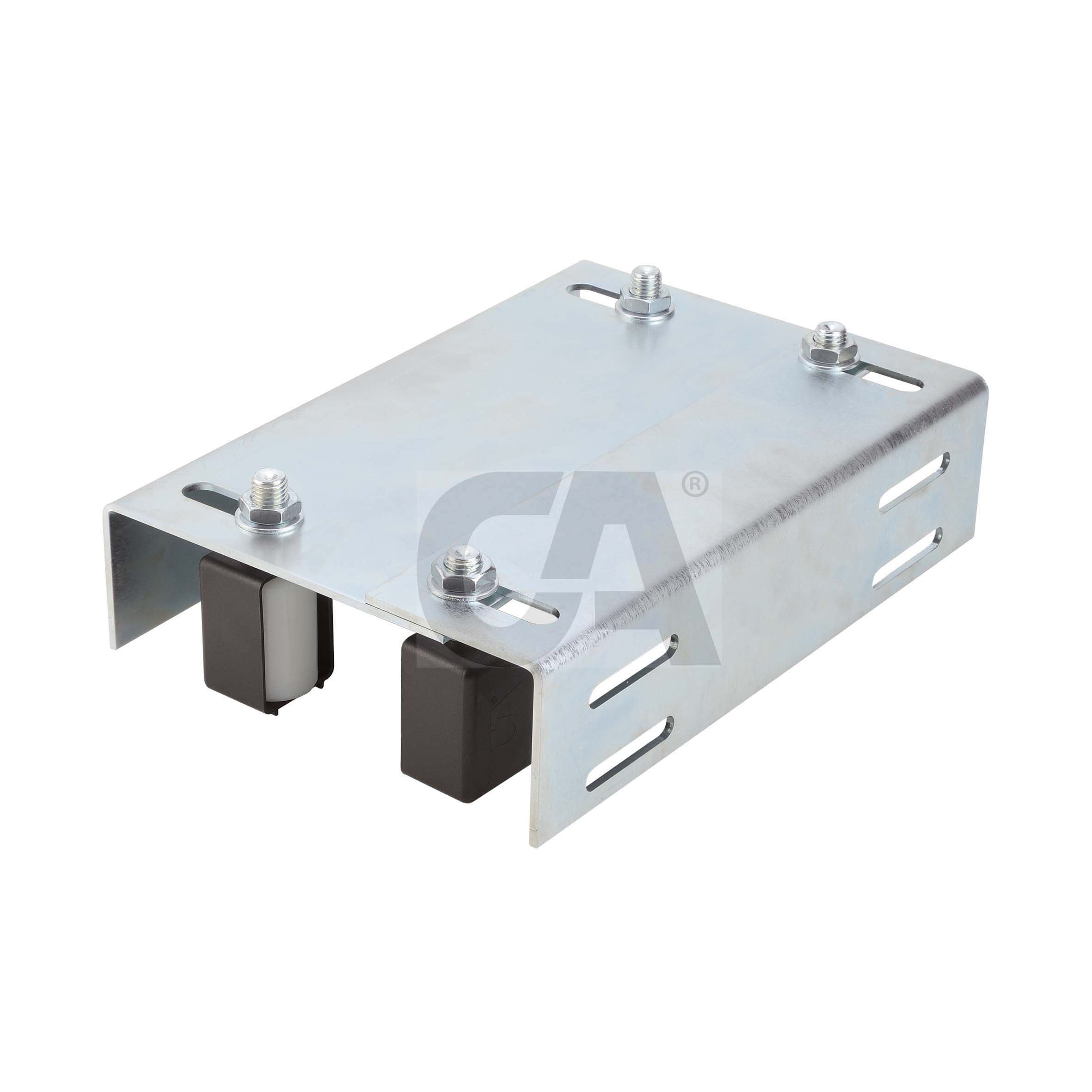

Adjustable upper guide bracket 4 guide rollers

SKU: 462
462.P

Adjustable upper guide bracket 4 guide rollers small

462.M

Adjustable upper guide bracket 4 guide rollers medium

462.G

Adjustable upper guide bracket 4 guide rollers large

  • adjustable
  • fix
  • weld

Technical table

cod. mm. pz/pcs A B C E F G H asole L sp I M olive Barcode CodTek
462.P PICCOLA 6 43-86 93-156 149-197 76 54 91 21 11x54 220 3 155 M14 Ø30x40 8033039311924 AAC046204ZB
462.M MEDIA 4 47-90 89-151 149-197 76 54 91 21 11x54 220 3 155 M16 Ø40x45 8033039311870 AAC046205ZB
462.G GRANDE 2 49-91 110-195 200-243 81 74 157 26 11x63 350 4 285 M16 Ø40x60 8033039312006 AAC046206ZB
